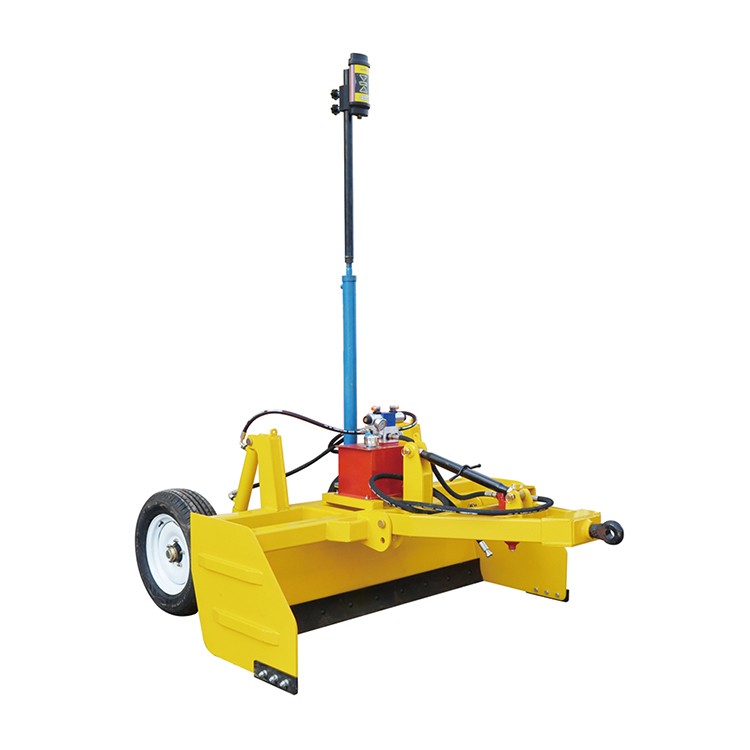

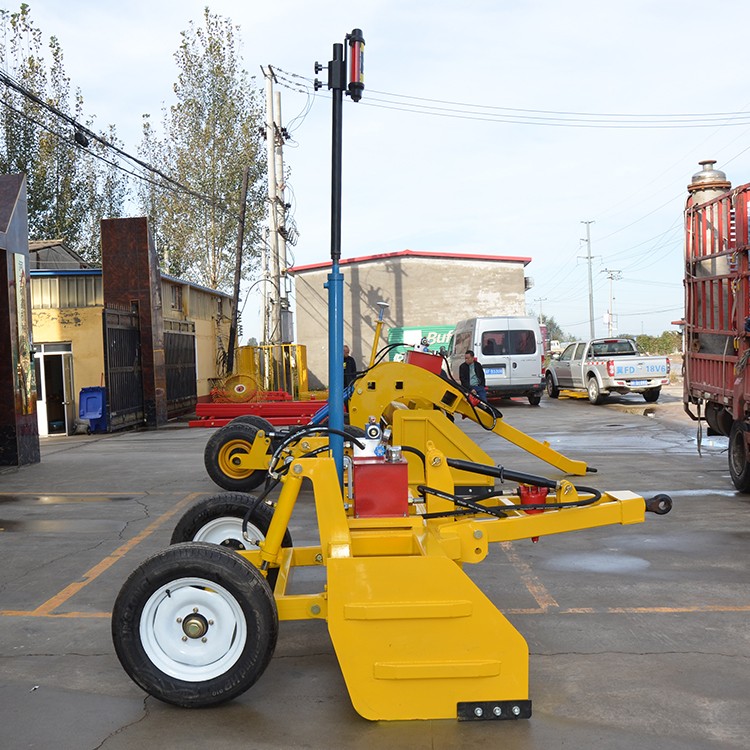

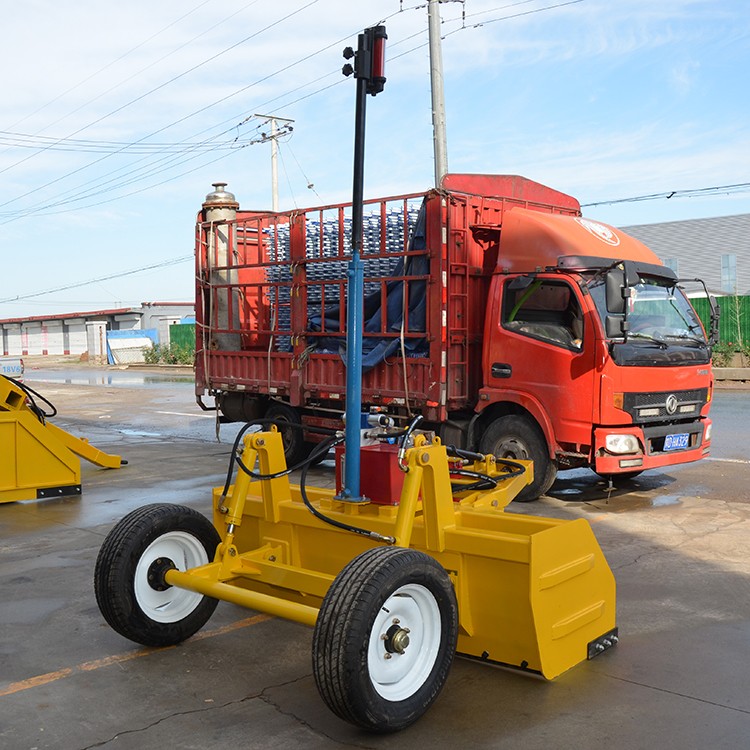

Agricultural Machinery laser land grader
Reliable Quality
Competitive Prices
Fast Delivery
Negotiable Payment Term
Customize Packing Available
Model | 12PW-4.0 | 12PW-3.0A | 12PW-2.8/3.5 | 12PW-2.5/3.2 | 12PW-2.5 | 12PW-1.5/2.2 |
Working Width | 4 | 3 | 3.5 | 3.2 | 2.5 | 2.2 |
CONTROL MODE | STATELLITE CONTROL | STATELLITE CONTROL | STATELLITE CONTROL | STATELLITE CONTROL | STATELLITE CONTROL | STATELLITE CONTROL |
LEVELLING SHOVEL TYPE | CAMBER BEAM ADJUSTABLE | CAMBER BEAM FIXED | STRAIGHT SHOVEL | STRAIGHT SHOVEL | STRAIGHT SHOVEL | STRAIGHT SHOVEL |
TYRE SIZE | 10.0/75-15.3 | 31/15.5-15 | 10.0/75-15.3 | 10.5/75-15.3 | 10.0/75-15.3 | 23*8.50/12 |
matched power | 154.4-180.5 | 102.9-154.4 | 102.9-154.4 | 102.9-154.4 | 80.4-102.9 | 50.4-80.9 |
working rate ha | 0.533333333 | 0.33 | 0.4 | 0.33 | 0.266666667 | 0.233333333 |
Size | 4800*2650*1700 | 4300*3120*1650 | 4000*2930*1350 | 4000*2614*1350 | 4000*2610*1350 | 2650*1600*1320 |
weight | 2600 | 1980 | 1480 | 1440 | 1150 | 1150 |
Kundong company mainly produces advanced farm machinery equipment
such as Rotary tillers, Mowers, Rakes, Graders, Seeder machinery, Harvesters,
Fertilizer applicators, Sprayers, etc.
Our company focus on agricultural machinery and spare parts for more than
20 years,Our products are exported to all over the world and have received
unanimous praise from customers.
1, All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel
which is thicker than 3mm. Strong enough to carry and protect the machine.
2, Black plastic film will also protect the machine from rain and sun shine.
3, All the frames is welded according to the machine size, to make sure the minimum
size and weight.
